FIXED IND 3.3UH 380MA 850MOHM TH

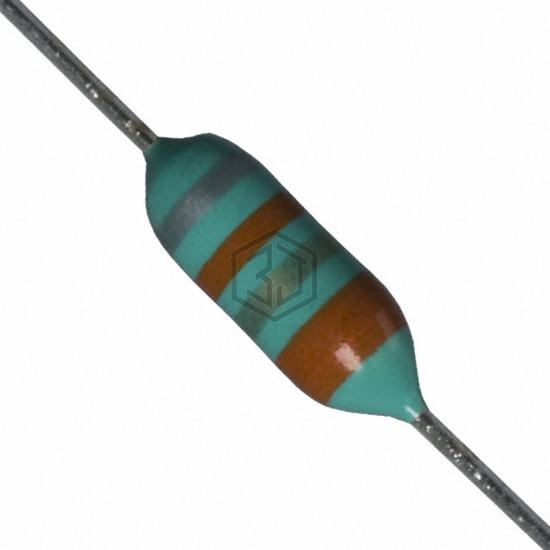

8230-32-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 3.3UH 380MA 850MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Axial, current rating (amps) 380 mA.
In Stock: 2,267
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 380 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 850mOhm Max |
| Q @ Freq | 45 @ 7.9MHz |
| Frequency - Self Resonant | 90MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 8230-32-RC and get a quote within 24 hours.
