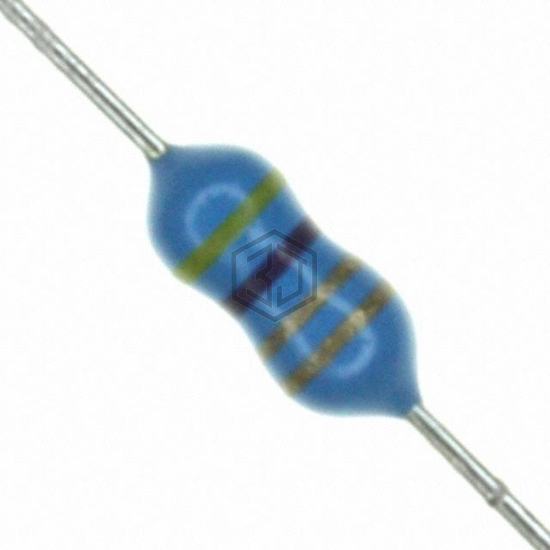

FIXED IND 4.7UH 530MA 350MOHM TH
78F4R7J-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 4.7UH 530MA 350MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Axial, current rating (amps) 530 mA.
In Stock: 231
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 530 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 350mOhm Max |
| Q @ Freq | 45 @ 7.9MHz |
| Frequency - Self Resonant | 38MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 78F4R7J-RC and get a quote within 24 hours.
