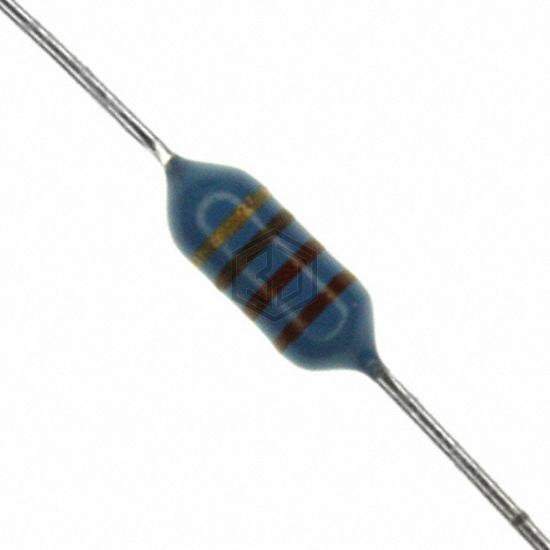

FIXED IND 220UH 130MA 6.8 OHM TH
78F221J-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 220UH 130MA 6.8 OHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Axial, current rating (amps) 130 mA.
In Stock: 10,098
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 130 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.8Ohm Max |
| Q @ Freq | 60 @ 790kHz |
| Frequency - Self Resonant | 4MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 790 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 78F221J-RC and get a quote within 24 hours.
