FIXED IND 470UH 126MA 8.5 OHM TH

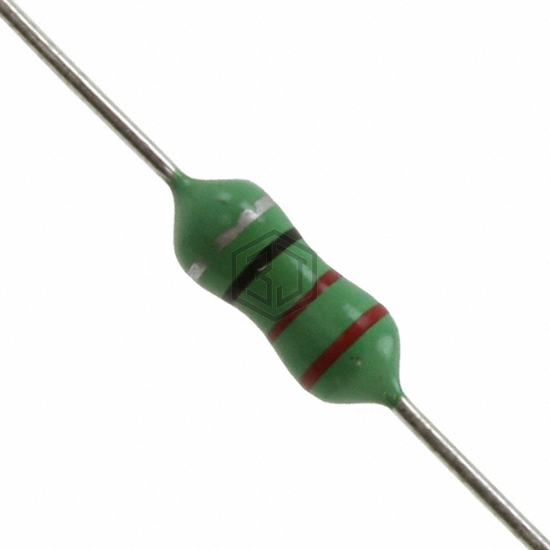

77F471J-TR-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 470UH 126MA 8.5 OHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Axial, current rating (amps) 126 mA.
In Stock: 4,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 126 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.5Ohm Max |
| Q @ Freq | 50 @ 796kHz |
| Frequency - Self Resonant | 1.8MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) |
| Height - Seated (Max) | - |
