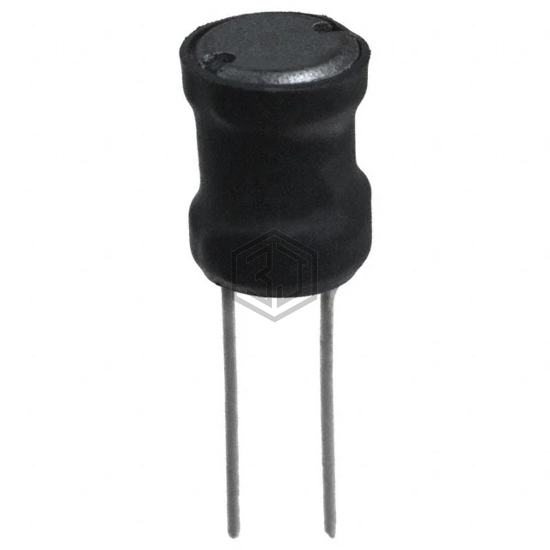

FIXED IND 820UH 560MA 1.8 OHM TH
6000-821K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 820UH 560MA 1.8 OHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 560 mA.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 820 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 560 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.8Ohm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 1.5MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
