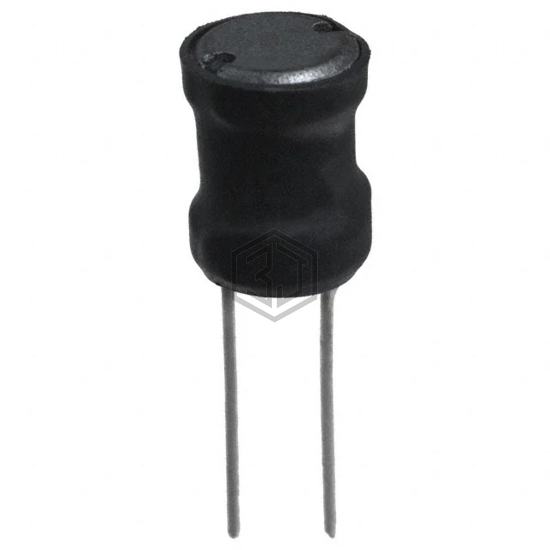

FIXED IND 56UH 1.48A 180 MOHM TH
6000-560K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 56UH 1.48A 180 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 1.48 A.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 56 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.48 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency - Self Resonant | 5.4MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
Submit your RFQ for 6000-560K-RC and get a quote within 24 hours.
