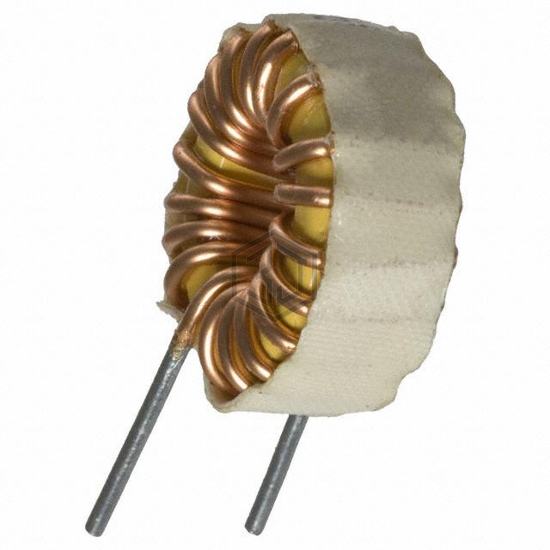

FIXED IND 125UH 7.75A 32 MOHM TH
5716-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 125UH 7.75A 32 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Radial, Vertical (Open), current rating (amps) 7.75 A.
In Stock: 236
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 125 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 7.75 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 32mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 5716-RC and get a quote within 24 hours.
