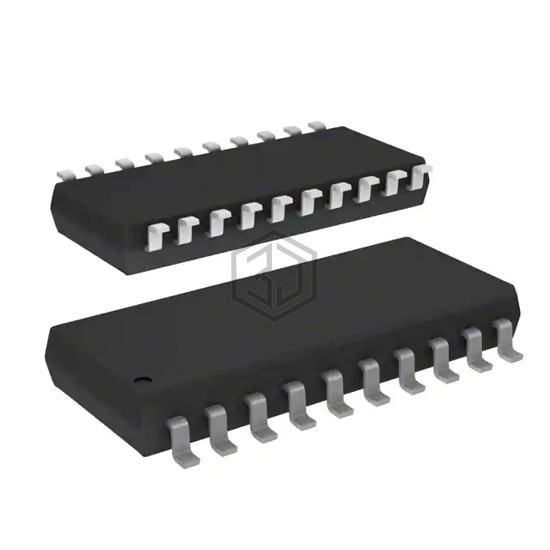

RES ARRAY 19 RES 560 OHM 20SOIC
4820P-2-561 is a Resistor Networks, Arrays manufactured by Bourns Inc.. RES ARRAY 19 RES 560 OHM 20SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 20-SOIC (0.220", 5.59mm Width), size / dimension 0.540" L x 0.220" W (13.72mm x 5.59mm).
In Stock: 3,122
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Bussed |
| Resistance (Ohms) | 560 |
| Tolerance | ±2% |
| Number of Resistors | 19 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 20 |
| Power Per Element | 80mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.220", 5.59mm Width) |
| Supplier Device Package | 20-SOM |
| Size / Dimension | 0.540" L x 0.220" W (13.72mm x 5.59mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 766161561GPTR7 | CTS Resistor Products | RES ARRAY 15 RES 560 OHM 16SOIC | 96% | View |
| 766161561GP | CTS Resistor Products | RES ARRAY 15 RES 560 OHM 16SOIC | 96% | View |
| SOMC1401560RGEA | Vishay Dale | RES ARRAY 13 RES 560 OHM 14SOIC | 93% | View |
| 766141511GP | CTS Resistor Products | RES ARRAY 13 RES 510 OHM 14SOIC | 88% | View |
| 752091561GPTR13 | CTS Resistor Products | RES ARRAY 8 RES 560 OHM 9SRT | 84% | View |
| 767141561GP | CTS Resistor Products | RES ARRAY 13 RES 560 OHM 14SOIC | 83% | View |
Submit your RFQ for 4820P-2-561 and get a quote within 24 hours.
