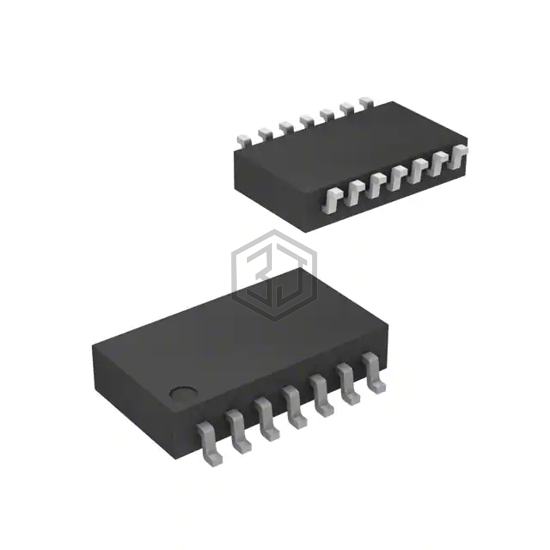

RES ARRAY 7 RES 560 OHM 14SOIC
4814P-1-561 is a Resistor Networks, Arrays manufactured by Bourns Inc.. RES ARRAY 7 RES 560 OHM 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 14-SOIC (0.220", 5.59mm Width), size / dimension 0.390" L x 0.220" W (9.91mm x 5.59mm).
In Stock: 1,255
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 560 |
| Tolerance | ±2% |
| Number of Resistors | 7 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 14 |
| Power Per Element | 160mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.220", 5.59mm Width) |
| Supplier Device Package | 14-SOM |
| Size / Dimension | 0.390" L x 0.220" W (9.91mm x 5.59mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
