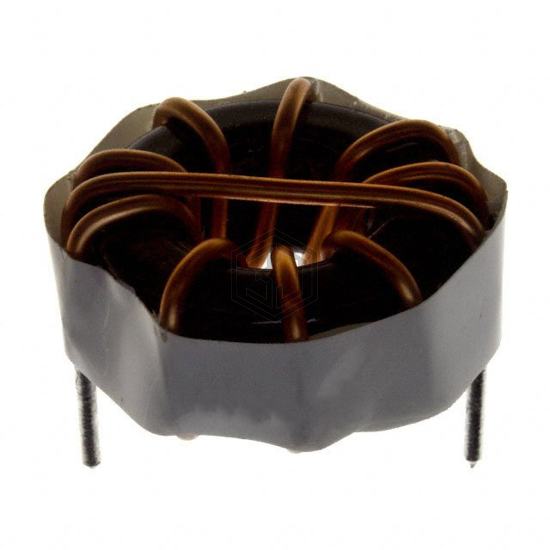

FIXED IND 680UH 3.8A 113 MOHM TH
2300LL-681-H-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 680UH 3.8A 113 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Horizontal (Open), current rating (amps) 3.8 A.
In Stock: 352
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Sendust |
| Inductance | 680 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 113mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.280" Dia (32.51mm) |
| Height - Seated (Max) | 0.650" (16.51mm) |
Submit your RFQ for 2300LL-681-H-RC and get a quote within 24 hours.
