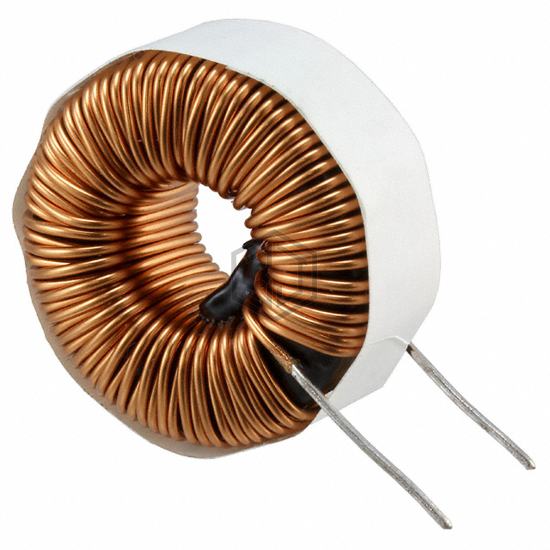

FIXED IND 100UH 7.8A 27 MOHM TH
2300LL-101-V-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 100UH 7.8A 27 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical (Open), current rating (amps) 7.8 A.
In Stock: 690
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Sendust |
| Inductance | 100 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 7.8 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 27mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 2300LL-101-V-RC and get a quote within 24 hours.
