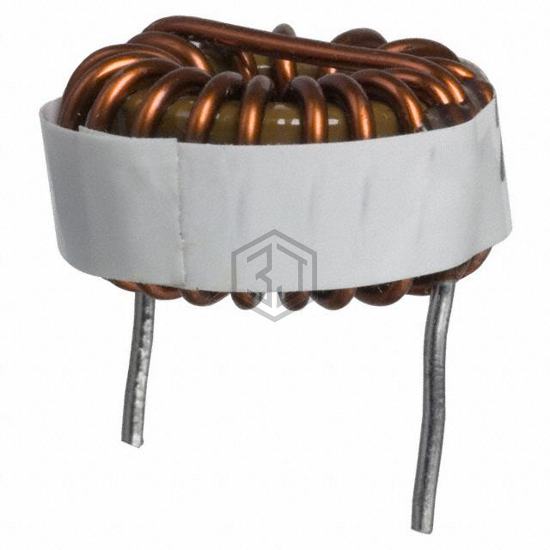

FIXED IND 22UH 10.3A 10 MOHM TH
2205-H-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 22UH 10.3A 10 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Radial, Horizontal (Open), current rating (amps) 10.3 A.
In Stock: 2,240
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 22 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 10.3 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.950" Dia (24.13mm) |
| Height - Seated (Max) | 0.550" (13.97mm) |
Submit your RFQ for 2205-H-RC and get a quote within 24 hours.
