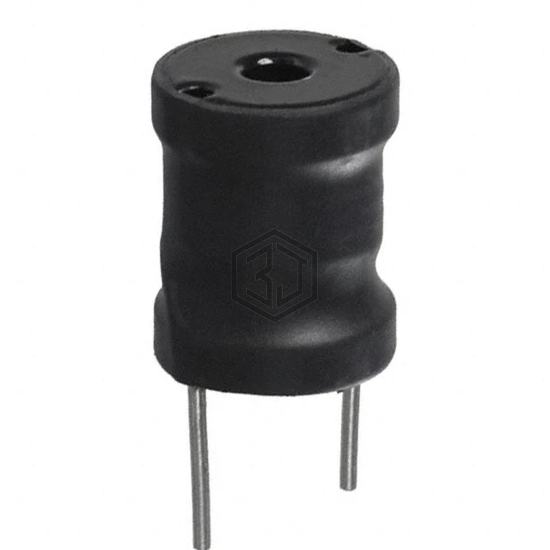

FIXED IND 330UH 1.3A 336 MOHM TH
1110-331K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 330UH 1.3A 336 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 1.3 A.
In Stock: 204
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 336mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.660" Dia (16.76mm) |
| Height - Seated (Max) | 0.840" (21.34mm) |
Submit your RFQ for 1110-331K-RC and get a quote within 24 hours.
