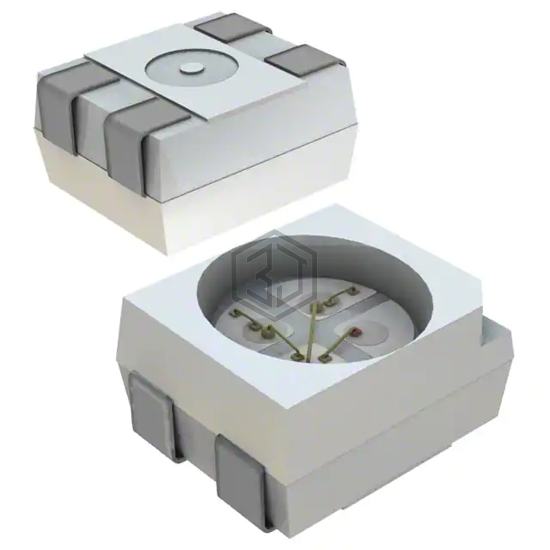

LED BLUE/RED/YLW CLEAR 4PLCC SMD
SMTL4-SRYB is a LED Indication - Discrete manufactured by Bivar Inc.. LED BLUE/RED/YLW CLEAR 4PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.2V Blue, 1.9V Red, 1.9V Yellow, package / case 4-PLCC, color Blue, Red, Yellow.
In Stock: 9,022
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Red, Yellow |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 285mcd Blue, 180mcd Red, 180mcd Yellow |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.2V Blue, 1.9V Red, 1.9V Yellow |
| Current - Test | 20mA Blue, 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 470nm Blue, 631nm Red, 591nm Yellow |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.05mm |
Submit your RFQ for SMTL4-SRYB and get a quote within 24 hours.
