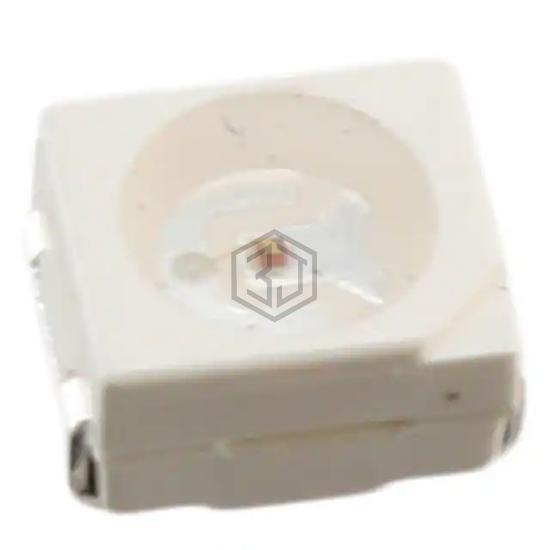

LED RGB CLEAR 4PLCC SMD
SMTL4-SRGB is a LED Indication - Discrete manufactured by Bivar Inc.. LED RGB CLEAR 4PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Red, 3.3V Green, 3.3V Blue, package / case 4-PLCC, color Red, Green, Blue (RGB).
In Stock: 16,611
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 180mcd Red, 1450mcd Green, 285mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.05mm |
Submit your RFQ for SMTL4-SRGB and get a quote within 24 hours.
