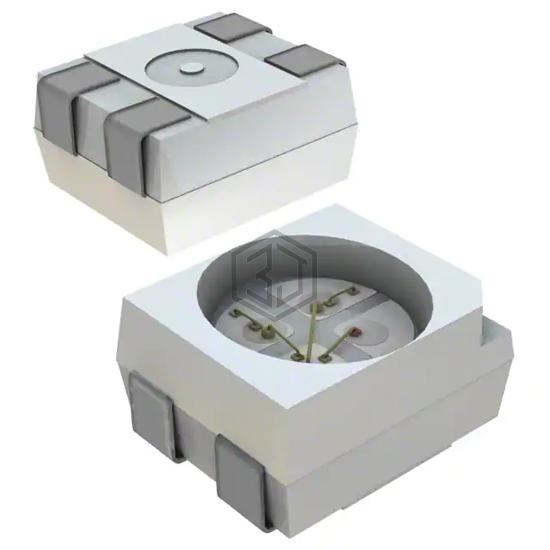

LED GREEN/RED/YLW CLR 4PLCC SMD
SMTL4-RGY is a LED Indication - Discrete manufactured by Bivar Inc.. LED GREEN/RED/YLW CLR 4PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Green, 1.85V Red, 1.9V Yellow, package / case 4-PLCC, color Green, Red, Yellow.
In Stock: 80,962
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red, Yellow |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 40mcd Green, 36mcd Red, 16mcd Yellow |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.9V Green, 1.85V Red, 1.9V Yellow |
| Current - Test | 20mA Green, 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 640nm Red, 585nm Yellow |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.05mm |
