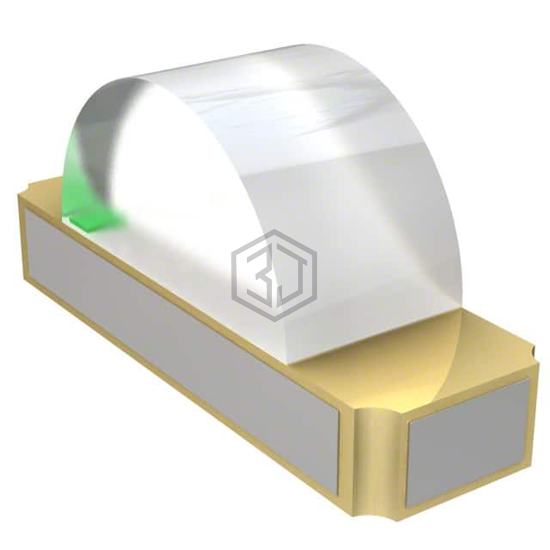

LED GREEN/RED CLEAR 1204 SMD R/A
SM1204BC is a LED Indication - Discrete manufactured by Bivar Inc.. LED GREEN/RED CLEAR 1204 SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2V Green, 2V Red, package / case 1204 (3210 Metric), color Green, Red.
In Stock: 73,427
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 18mcd Green, 7.2mcd Red |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 570nm Green, 628nm Red |
| Wavelength - Peak | 568nm Green, 640nm Red |
| Features | - |
| Package / Case | 1204 (3210 Metric) |
| Supplier Device Package | 1204 |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Height (Max) | 1.00mm |
