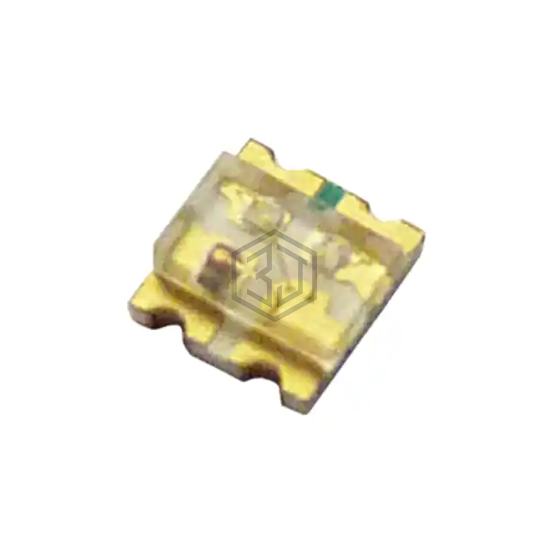

LED RGB CLEAR 0605 SMD
SM0605RGB is a LED Indication - Discrete manufactured by Bivar Inc.. LED RGB CLEAR 0605 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.1V Green, 2.9V Blue, package / case 0605 (1613 Metric), color Red, Green, Blue (RGB).
In Stock: 345,744
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 120mcd Red, 700mcd Green, 145mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.1V Green, 2.9V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 630nm Red, 523nm Green, 468nm Blue |
| Features | - |
| Package / Case | 0605 (1613 Metric) |
| Supplier Device Package | 0605 |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.85mm |
