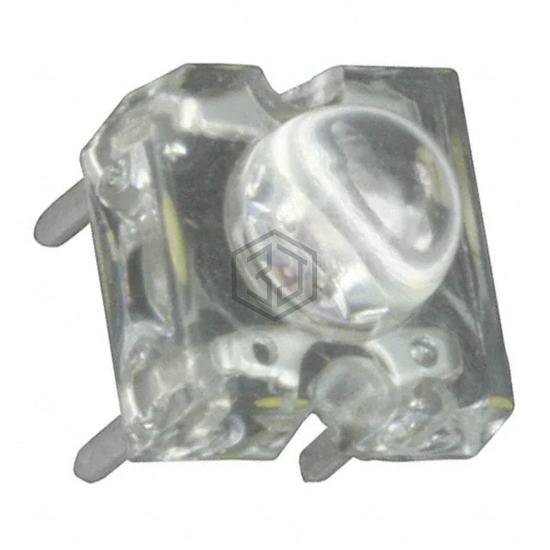

LED RGB CLEAR T/H
R50RGB-4-0045 is a LED Indication - Discrete manufactured by Bivar Inc.. LED RGB CLEAR T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.6V Red, 3.8V Green, 3.8V Blue, package / case 4-DIP (0.200", 5.08mm), color Red, Green, Blue (RGB).
In Stock: 25,173
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Cathode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 4000mcd Red, 5000mcd Green, 400mcd Blue |
| Lens Style | Round with Domed Top |
| Lens Size | 4.60mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.6V Red, 3.8V Green, 3.8V Blue |
| Current - Test | 50mA Red, 50mA Green, 50mA Blue |
| Viewing Angle | 45° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 628nm Red, 520nm Green, 465nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-DIP (0.200", 5.08mm) |
| Supplier Device Package | - |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Height (Max) | 7.80mm |
Submit your RFQ for R50RGB-4-0045 and get a quote within 24 hours.
