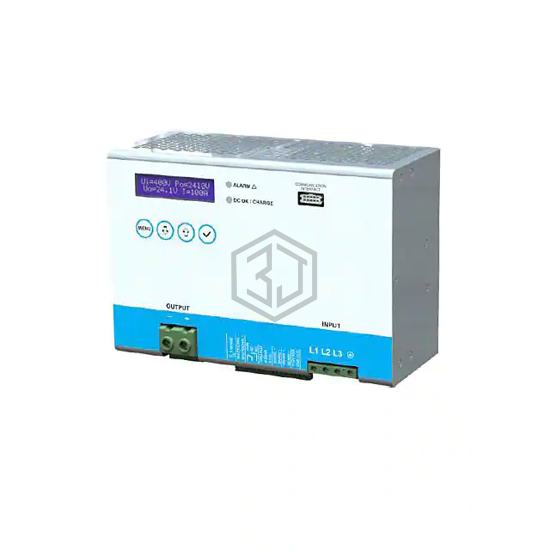

AC/DC CONVERTER 72V 2400W
LDT2400-72 is a Industrial, DIN Rail Power Supplies manufactured by Bel Power Solutions. AC/DC CONVERTER 72V 2400W. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 33A, size / dimension 3.98" L x 9.17" W x 6.30" H (101.0mm x 233.0mm x 160.0mm), number of outputs 1.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 340 ~ 550 VAC (3 Phase) |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 72V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 33A |
| Power (Watts) | 2400W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial) |
| Efficiency | 93% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output |
| Size / Dimension | 3.98" L x 9.17" W x 6.30" H (101.0mm x 233.0mm x 160.0mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for LDT2400-72 and get a quote within 24 hours.
