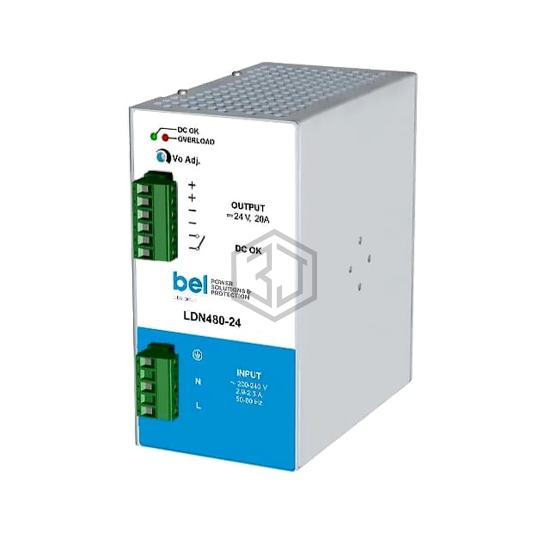

AC/DC CONVERTER 24V 480W
LDN480-24 is a Industrial, DIN Rail Power Supplies manufactured by Bel Power Solutions. AC/DC CONVERTER 24V 480W. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 2.87" L x 4.92" W x 5.51" H (73.0mm x 125.0mm x 140.0mm), number of outputs 1.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 184 ~ 264 VAC |
| DC Voltage - Input (Min) | 250V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial) |
| Efficiency | 91% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing |
| Size / Dimension | 2.87" L x 4.92" W x 5.51" H (73.0mm x 125.0mm x 140.0mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for LDN480-24 and get a quote within 24 hours.
