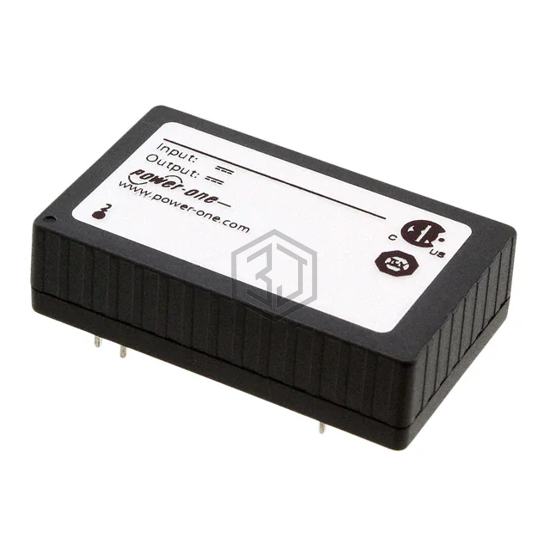

DC DC CONVERTER +/-5V 4W
20IMX4-0505-8KG is a DC DC Converters manufactured by Bel Power Solutions. DC DC CONVERTER +/-5V 4W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 24-DIP Module, 13 Leads, current - output (max) 350mA, 350mA.
In Stock: 55
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module, Conformal Coated |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 8.4V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 350mA, 350mA |
| Power (Watts) | 4 W |
| Voltage - Isolation | 2 kV |
| Applications | ITE (Commercial), Railway |
| Features | OTP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 13 Leads |
| Size / Dimension | 1.22" L x 0.79" W x 0.33" H (31.0mm x 20.0mm x 8.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
