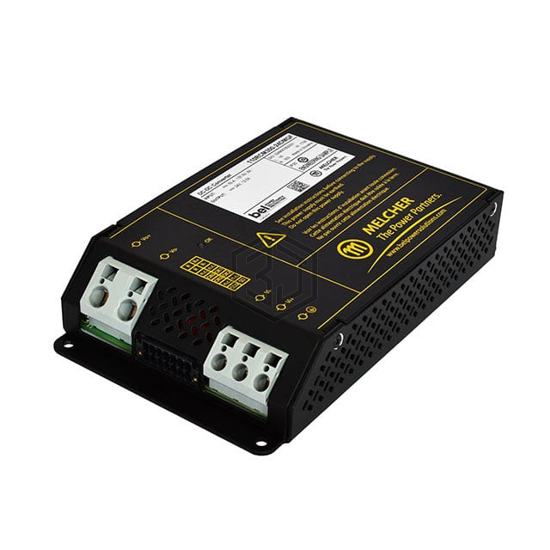

DC/DC CONVERTER 24V 300W
110RCM300-24 is a DC DC Converters manufactured by Bel Power Solutions. DC/DC CONVERTER 24V 300W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C, current - output (max) 12.5A, size / dimension 7.43" L x 4.57" W x 1.50" H (188.7mm x 116.1mm x 38.1mm).
In Stock: 1,244
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed, Conformal Coated |
| Voltage - Input (Min) | 50.4V |
| Voltage - Input (Max) | 137.5V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 12.5A |
| Power (Watts) | 300W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 93.5% |
| Operating Temperature | -40°C ~ 70°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.43" L x 4.57" W x 1.50" H (188.7mm x 116.1mm x 38.1mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for 110RCM300-24 and get a quote within 24 hours.
