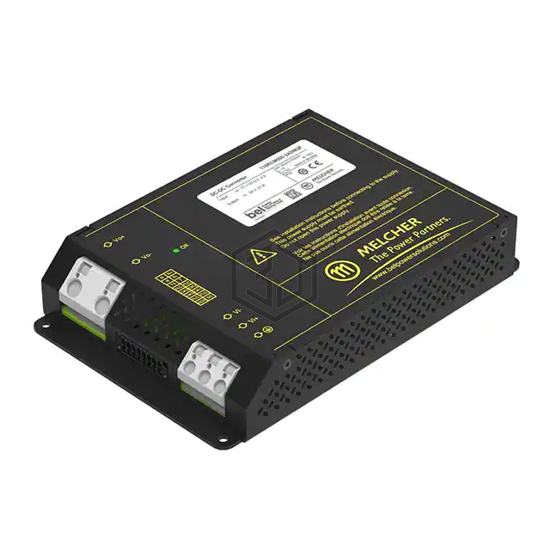

DC/DC CONVERTER 24V 1008W
110RCM1000-24DMQF is a DC DC Converters manufactured by Bel Power Solutions. DC/DC CONVERTER 24V 1008W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 42A, size / dimension 8.23" L x 5.55" W x 1.81" H (209.0mm x 141.0mm x 46.0mm).
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 77V |
| Voltage - Input (Max) | 137.5V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 42A |
| Power (Watts) | 1008W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 96% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.23" L x 5.55" W x 1.81" H (209.0mm x 141.0mm x 46.0mm) |
| Approval Agency | cCSAus, CE, NEMKO |
| Standard Number | - |
