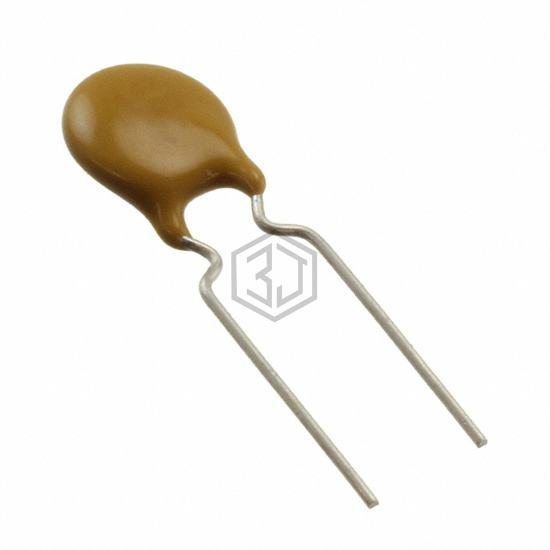

PTC RESET FUSE 60V 400MA RADIAL
0ZRR0040FF2E is a PTC Resettable Fuses manufactured by Bel Fuse Inc.. PTC RESET FUSE 60V 400MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 40 A.
In Stock: 2,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 400 mA |
| Current - Trip (It) | 800 mA |
| Time to Trip | 3.8 s |
| Resistance - Initial (Ri) (Min) | 550 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.29 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
