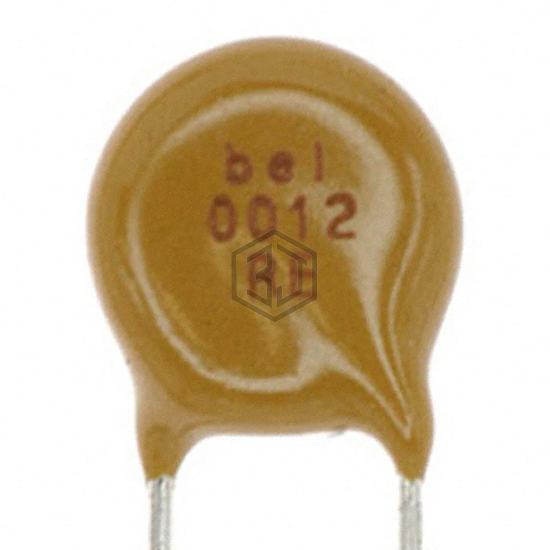

PTC RESET FUSE 240V 550MA RADIAL
0ZRE0055FF2A is a PTC Resettable Fuses manufactured by Bel Fuse Inc.. PTC RESET FUSE 240V 550MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 7 A.
In Stock: 52,258
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V |
| Current - Max | 7 A |
| Current - Hold (Ih) (Max) | 550 mA |
| Current - Trip (It) | 1.25 A |
| Time to Trip | 26 s |
| Resistance - Initial (Ri) (Min) | 450 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.45 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.551" L x 0.161" W (14.00mm x 4.10mm) |
| Height - Seated (Max) | 0.854" (21.70mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
Submit your RFQ for 0ZRE0055FF2A and get a quote within 24 hours.
