PTC RESET FUSE 15V 1.5A 2016

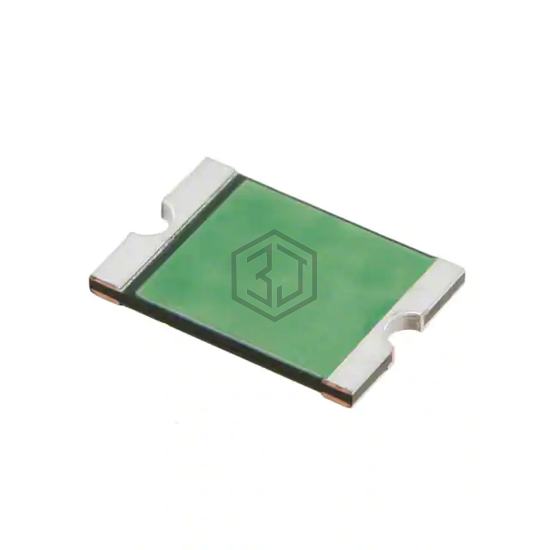

0ZCN0150FF2C is a PTC Resettable Fuses manufactured by Bel Fuse Inc.. PTC RESET FUSE 15V 1.5A 2016. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2016 (5041 Metric), Concave, current - max 100 A.
In Stock: 3,176
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 1.5 A |
| Current - Trip (It) | 3 A |
| Time to Trip | 800 ms |
| Resistance - Initial (Ri) (Min) | 70 mOhms |
| Resistance - Post Trip (R1) (Max) | 180 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2016 (5041 Metric), Concave |
| Size / Dimension | 0.200" L x 0.160" W (5.08mm x 4.07mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.026" (0.65mm) |
| Lead Spacing | - |
Submit your RFQ for 0ZCN0150FF2C and get a quote within 24 hours.
