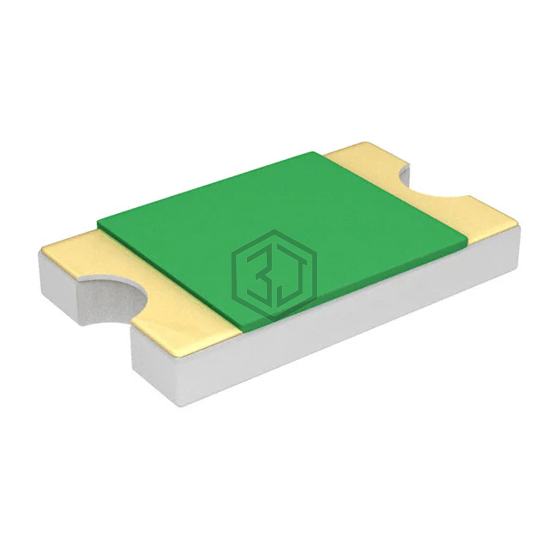

PTC RESET FUSE 15V 100MA 0805
0ZCK0010FF2G is a PTC Resettable Fuses manufactured by Bel Fuse Inc.. PTC RESET FUSE 15V 100MA 0805. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0805 (2012 Metric), Concave, current - max 100 A.
In Stock: 209,773
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 300 mA |
| Time to Trip | 1.5 s |
| Resistance - Initial (Ri) (Min) | 700 mOhms |
| Resistance - Post Trip (R1) (Max) | 6 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.085" L x 0.053" W (2.15mm x 1.35mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
Submit your RFQ for 0ZCK0010FF2G and get a quote within 24 hours.
