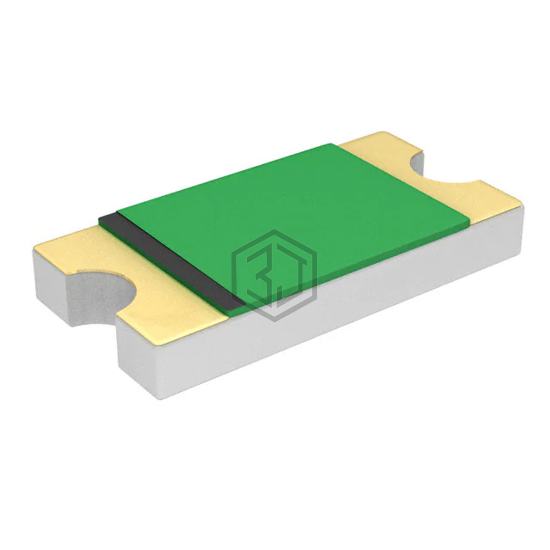

PTC RESET FUSE 8V 750MA 1206
0ZCJ0075FF2E is a PTC Resettable Fuses manufactured by Bel Fuse Inc.. PTC RESET FUSE 8V 750MA 1206. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1206 (3216 Metric), Concave, current - max 100 A.
In Stock: 226,427
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 8V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Trip (It) | 1.5 A |
| Time to Trip | 200 ms |
| Resistance - Initial (Ri) (Min) | 90 mOhms |
| Resistance - Post Trip (R1) (Max) | 290 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049" (1.25mm) |
| Lead Spacing | - |
Submit your RFQ for 0ZCJ0075FF2E and get a quote within 24 hours.
