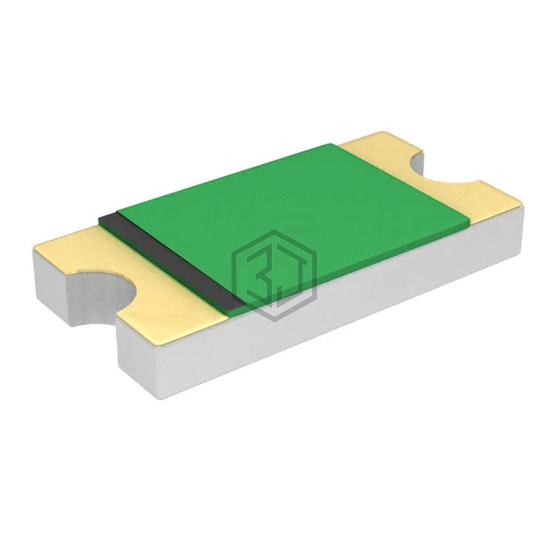

PTC RESET FUSE 60V 100MA 1206
0ZCJ0010FF2E is a PTC Resettable Fuses manufactured by Bel Fuse Inc.. PTC RESET FUSE 60V 100MA 1206. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1206 (3216 Metric), Concave, current - max 10 A.
In Stock: 465,607
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 10 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 250 mA |
| Time to Trip | 1 s |
| Resistance - Initial (Ri) (Min) | 1.6 Ohms |
| Resistance - Post Trip (R1) (Max) | 15 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
Submit your RFQ for 0ZCJ0010FF2E and get a quote within 24 hours.
