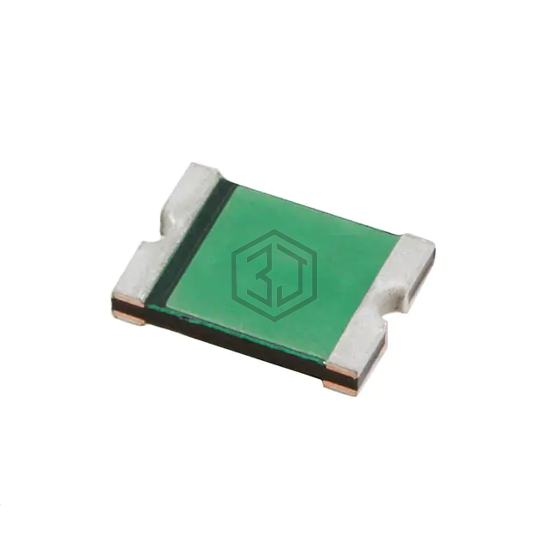

PTC RESET FUSE 60V 100MA 1812
0ZCG0010FF2C is a PTC Resettable Fuses manufactured by Bel Fuse Inc.. PTC RESET FUSE 60V 100MA 1812. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1812 (4532 Metric), Concave, current - max 100 A.
In Stock: 287,420
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 300 mA |
| Time to Trip | 20 ms |
| Resistance - Initial (Ri) (Min) | 1.6 Ohms |
| Resistance - Post Trip (R1) (Max) | 15 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.035" (0.90mm) |
| Lead Spacing | - |
Submit your RFQ for 0ZCG0010FF2C and get a quote within 24 hours.
