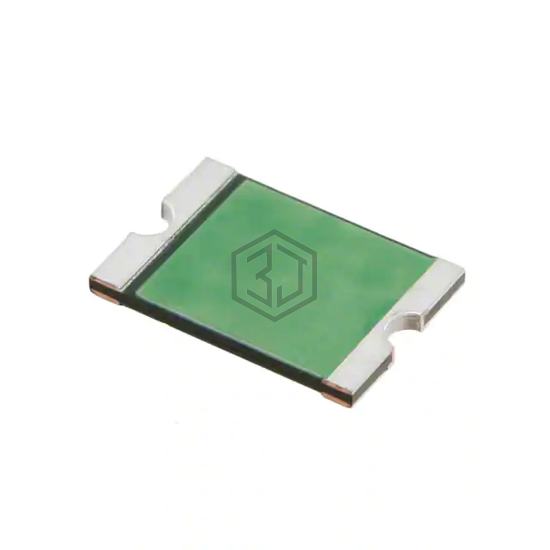

PTC RESET FUSE 24V 3.3A 2920
0ZCF0330FF2C is a PTC Resettable Fuses manufactured by Bel Fuse Inc.. PTC RESET FUSE 24V 3.3A 2920. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2920 (7351 Metric), Concave, current - max 100 A.
In Stock: 23,855
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 24V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 3.3 A |
| Current - Trip (It) | 5.5 A |
| Time to Trip | 20 s |
| Resistance - Initial (Ri) (Min) | 10 mOhms |
| Resistance - Post Trip (R1) (Max) | 48 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.045" (1.15mm) |
| Lead Spacing | - |
Submit your RFQ for 0ZCF0330FF2C and get a quote within 24 hours.
