LOW POWER, LONG RANGE SUB-1 GHZ

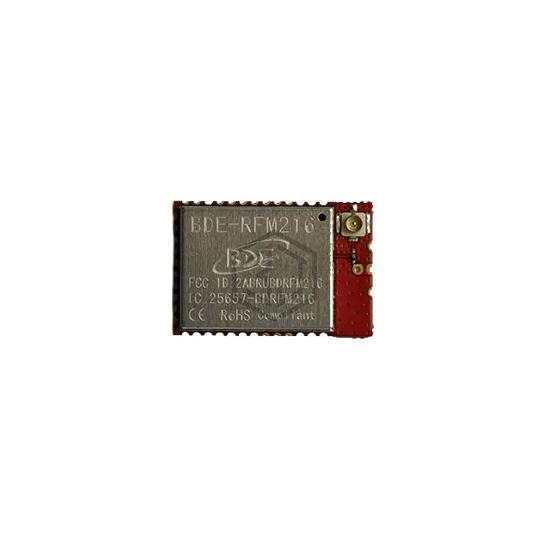

BDE-RFM216 is a RF Transceiver Modules and Modems manufactured by BDE Technology. LOW POWER, LONG RANGE SUB-1 GHZ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.8V, package / case 39-SMD Module.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Wireless M-Bus, 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk |
| Protocol | IEEE 802.15.4, Wireless M-Bus (T, S, C, N Mode), 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk |
| Modulation | 2GFSK, 4GFSK, GFSK |
| Frequency | 868MHz, 915MHz |
| Data Rate | 1Mbps |
| Power - Output | 14dBm |
| Sensitivity | -125dBm |
| Serial Interfaces | I²C, I²S, SPI, UART |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | CC1312R |
| Memory Size | 352kB Flash, 80kB RAM |
| Voltage - Supply | 1.8V ~ 3.8V |
| Current - Receiving | 5.8mA |
| Current - Transmitting | 8mA ~ 24.9mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 39-SMD Module |
Submit your RFQ for BDE-RFM216 and get a quote within 24 hours.
