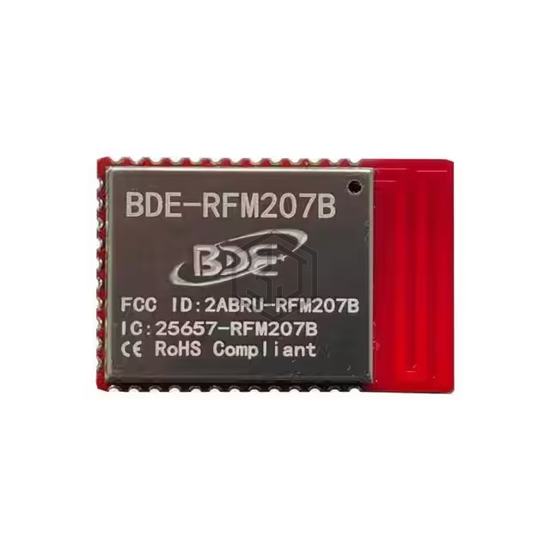

MULTIPROTOCOL 2.4G WIRELESS MODU
BDE-RFM207B is a RF Transceiver Modules and Modems manufactured by BDE Technology. MULTIPROTOCOL 2.4G WIRELESS MODU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.8V, package / case 36-SMD Module.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth, Zigbee, Thread |
| Protocol | Bluetooth Mesh, Bluetooth 5.2, Thread, Zigbee 3.0, 6LoWPAN, IEEE 802.15.4 |
| Modulation | DSSS, O-QPSK, GFSK |
| Frequency | 2.4GHz |
| Data Rate | 2Mbps |
| Power - Output | 5dBm |
| Sensitivity | -102dBm |
| Serial Interfaces | I²C, I²S, SPI, UART |
| Antenna Type | Integrated, PCB |
| Utilized IC / Part | CC2652RB |
| Memory Size | 352kB Flash, 80kB RAM |
| Voltage - Supply | 1.8V ~ 3.8V |
| Current - Receiving | 7.3mA |
| Current - Transmitting | 7.9mA ~ 10.2mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 36-SMD Module |
Submit your RFQ for BDE-RFM207B and get a quote within 24 hours.
