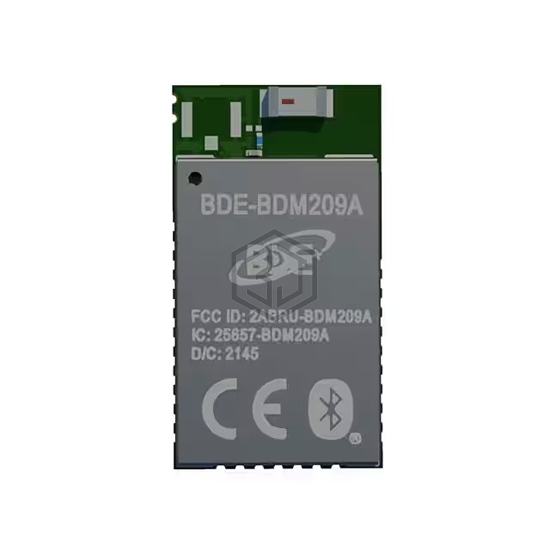

BLUETOOTH 5.1 DUAL-MODE MODULE
BDE-BDM209A is a RF Transceiver Modules and Modems manufactured by BDE Technology. BLUETOOTH 5.1 DUAL-MODE MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.05V ~ 3.7V, package / case 31-SMD Module.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.1, BR / EDR / LE |
| Modulation | 8DPSK, DQPSK, GFSK |
| Frequency | 2.4GHz |
| Data Rate | 2Mbps |
| Power - Output | 10dBm |
| Sensitivity | -92dBm |
| Serial Interfaces | I²C, SPI, UART |
| Antenna Type | Integrated, Chip + U.FL |
| Utilized IC / Part | CC2564C |
| Memory Size | 256kB Flash, 132kB ROM, 64kB RAM |
| Voltage - Supply | 2.05V ~ 3.7V |
| Current - Receiving | 20mA |
| Current - Transmitting | 40mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 31-SMD Module |
Submit your RFQ for BDE-BDM209A and get a quote within 24 hours.
