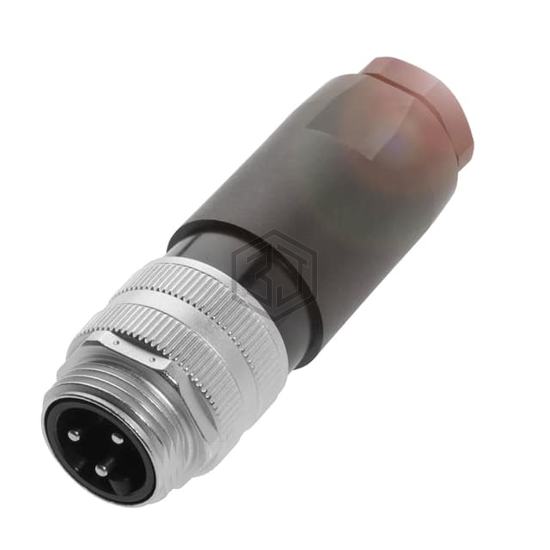

CONN RCPT MALE 3POS SCREW
BCC0ATE is a Circular Connectors manufactured by Balluff. CONN RCPT MALE 3POS SCREW. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 600VAC/DC, color Black, Silver.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 3 |
| Shell Size - Insert | 7/8"-3 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Screw |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Finish | - |
| Contact Finish - Mating | - |
| Color | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 9A |
| Voltage Rating | 600VAC/DC |
| Cable Opening | 0.394" ~ 0.472" (10.00mm ~ 12.00mm) |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for BCC0ATE and get a quote within 24 hours.
