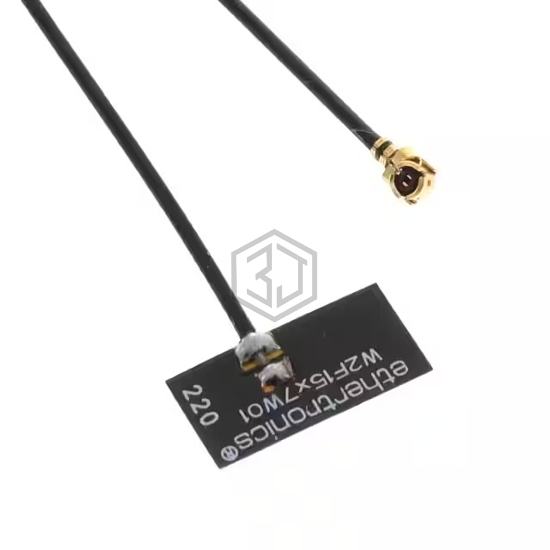

ANT ASSY, WLAN2 04 100 D0230
W2F15X7W01-U100D3B0C is a RF Antennas manufactured by KYOCERA AVX. ANT ASSY, WLAN2 04 100 D0230. Key specifications: mounting type Adhesive, termination U.FL, frequency range 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | WiFi |
| Frequency Group | SHF (f > 4GHz) |
| Frequency (Center/Band) | 5.5GHz, 6.525GHz |
| Frequency Range | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 2 |
| VSWR | - |
| Return Loss | -9dB, -7.3dB |
| Gain | 4.3dBi, 3.9dBi |
| Power - Max | - |
| Features | Cable - 100mm |
| Termination | U.FL |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.016" (0.40mm) |
| Applications | Wi-Fi |
Submit your RFQ for W2F15X7W01-U100D3B0C and get a quote within 24 hours.
