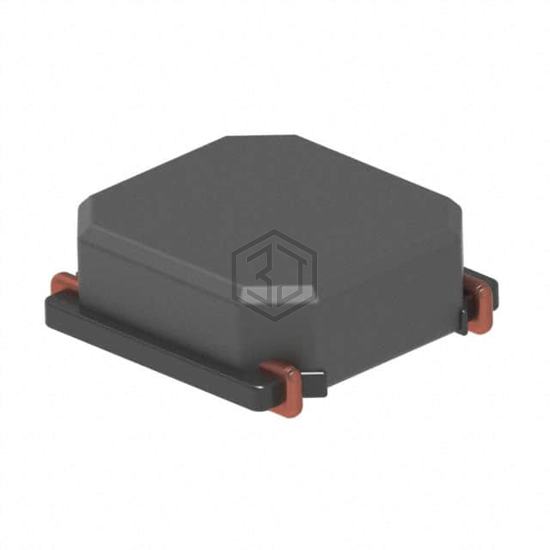

FIXED IND 1.2UH 6.2A 28MOHM SMD
LMLP05A6M1R2DTAS is a Fixed Inductors manufactured by KYOCERA AVX. FIXED IND 1.2UH 6.2A 28MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 6.2 A.
In Stock: 2,832
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.2 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Shielded |
| DC Resistance (DCR) | 28mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for LMLP05A6M1R2DTAS and get a quote within 24 hours.
