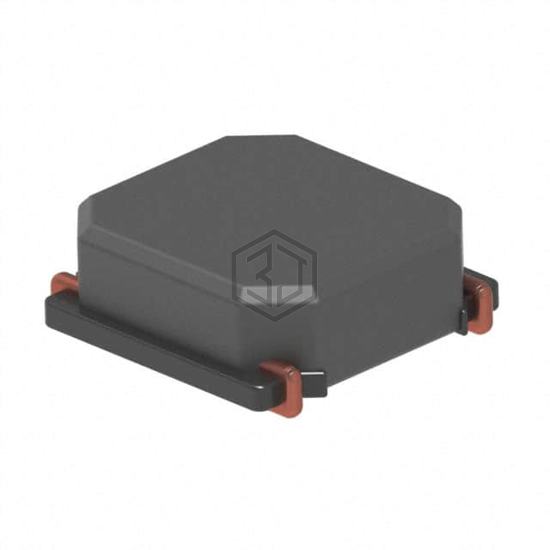

FIXED IND 470NH 7A 14 MOHM SMD
LMLP0405MR47DTAS is a Fixed Inductors manufactured by KYOCERA AVX. FIXED IND 470NH 7A 14 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 7 A.
In Stock: 590
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7 A |
| Current - Saturation (Isat) | 9.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.175" L x 0.157" W (4.45mm x 4.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for LMLP0405MR47DTAS and get a quote within 24 hours.
