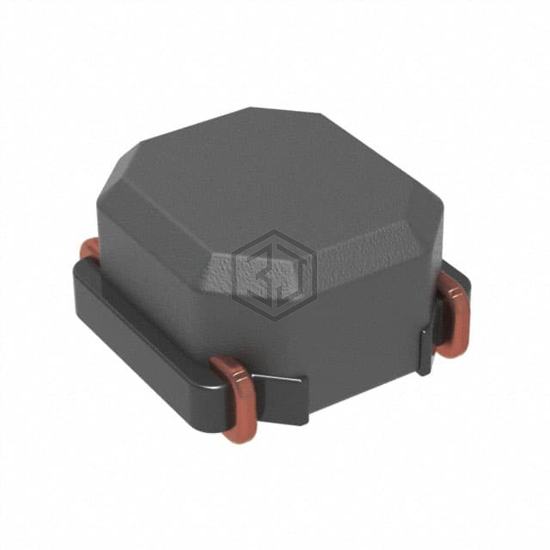

FIXED IND 4.7UH 1.04A 120MOHM SM
LMLP03B3N4R7CTAR is a Fixed Inductors manufactured by KYOCERA AVX. FIXED IND 4.7UH 1.04A 120MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.04 A.
In Stock: 4,388
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.04 A |
| Current - Saturation (Isat) | 1.02A |
| Shielding | Shielded |
| DC Resistance (DCR) | 120mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
