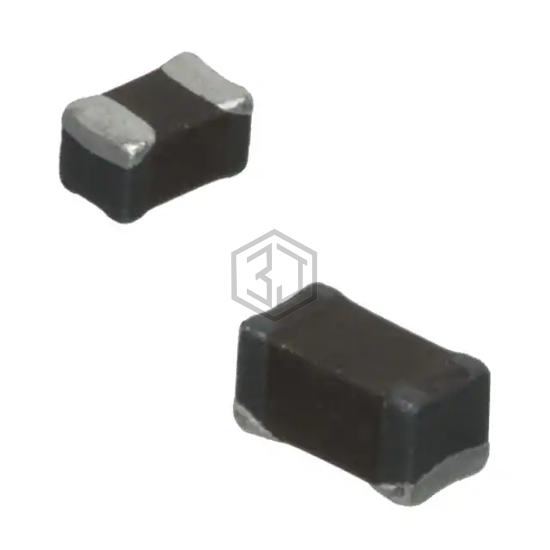

FIXED IND 10NH 250MA 650MOHM SMD
LCCI0201J10NGTAR is a Fixed Inductors manufactured by KYOCERA AVX. FIXED IND 10NH 250MA 650MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0201 (0603 Metric), current rating (amps) 250 mA.
In Stock: 29,325
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 10 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 650mOhm Max |
| Q @ Freq | 5 @ 100MHz |
| Frequency - Self Resonant | 4.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
Submit your RFQ for LCCI0201J10NGTAR and get a quote within 24 hours.
