FIXED IND 10NH 300MA 450MOHM SMD

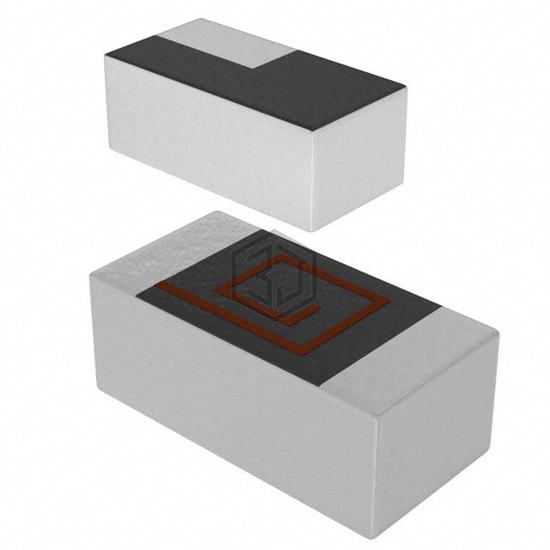

L0603100GGSTR is a Fixed Inductors manufactured by KYOCERA AVX. FIXED IND 10NH 300MA 450MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 300 mA.
In Stock: 5,152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Thin Film |
| Material - Core | Non-Magnetic |
| Inductance | 10 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 450mOhm Max |
| Q @ Freq | 28 @ 450MHz |
| Frequency - Self Resonant | 3.5GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 450 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.81mm) |
| Height - Seated (Max) | 0.028" (0.71mm) |
