FIXED IND 2.2NH 400MA 200MOHM SM

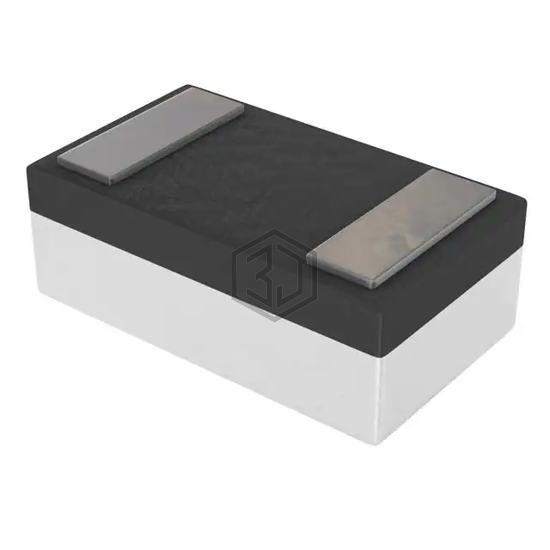

L04022R2BHNTR is a Fixed Inductors manufactured by KYOCERA AVX. FIXED IND 2.2NH 400MA 200MOHM SM. Key specifications: mounting type Surface Mount, package / case 0402 (1005 Metric), current rating (amps) 400 mA, size / dimension 0.039" L x 0.023" W (1.00mm x 0.58mm).
In Stock: 6,815
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Thin Film |
| Material - Core | Non-Magnetic |
| Inductance | 2.2 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 15 @ 450MHz |
| Frequency - Self Resonant | 15GHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 450 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.023" W (1.00mm x 0.58mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
Submit your RFQ for L04022R2BHNTR and get a quote within 24 hours.
