CAP CER 560PF 2.5KV P90 3838

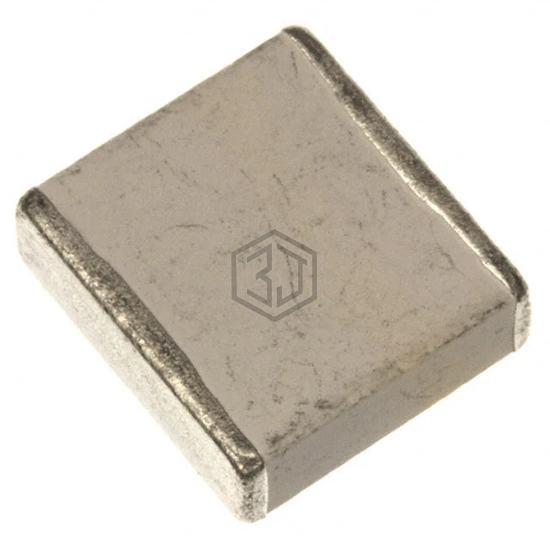

HQCEWM561GAH6A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 560PF 2.5KV P90 3838. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 2500V (2.5kV), package / case 3838 (9797 Metric).
In Stock: 8,455
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 pF |
| Tolerance | ±2% |
| Voltage - Rated | 2500V (2.5kV) |
| Temperature Coefficient | P90 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 3838 (9797 Metric) |
| Size / Dimension | 0.380" L x 0.380" W (9.65mm x 9.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.170" (4.32mm) |
| Lead Spacing | - |
| Lead Style | - |
HQCEWM561GAH6A is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 0805Y0630561KAT | Knowles Syfer | CAP CER 560PF 63V C0G/NP0 0805 | 56% | View |
| 0805N561J251CT | Walsin Technology Corporation | MLCC 560PF 250V NPO 0805 | 56% | View |
| GMC21CG561K25NT | CAL-CHIP ELECTRONICS, INC. | CAP CER 560PF 25V C0G/NP0 0805 | 56% | View |
| 1210J6300561JXR | Knowles Syfer | CAP CER 560PF 630V X7R 1210 | 56% | View |
| 1808Y1000561JDR | Knowles Syfer | CAP CER 560PF 100V X7R 1808 | 56% | View |
| 1210Y0500561JAR | Knowles Syfer | CAP CER 560PF 50V C0G/NP0 1210 | 56% | View |
Submit your RFQ for HQCEWM561GAH6A and get a quote within 24 hours.
