CAP CER 560PF 2.5KV NP0 3838

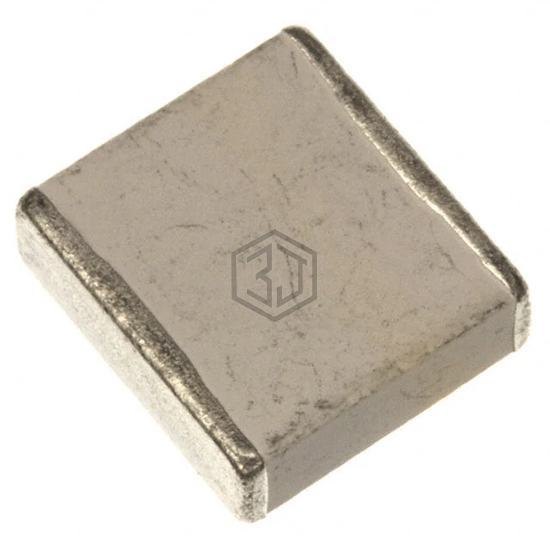

HQCEWA561JAT6A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 560PF 2.5KV NP0 3838. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 2500V (2.5kV), package / case 3838 (9797 Metric).
In Stock: 8,551
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 pF |
| Tolerance | ±5% |
| Voltage - Rated | 2500V (2.5kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 3838 (9797 Metric) |
| Size / Dimension | 0.380" L x 0.380" W (9.65mm x 9.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.170" (4.32mm) |
| Lead Spacing | - |
| Lead Style | - |
HQCEWA561JAT6A is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2220Y2K50561KXR | Knowles Syfer | CAP CER 560PF 2.5KV X7R 2220 | 100% | View |
| C0805X561G5HACAUTO | KEMET | CAP CER 0805 560PF 50V ULTRA STA | 56% | View |
| C0402C561F5JAC7867 | KEMET | CAP CER 560PF 50V U2J 0402 | 56% | View |
| C1808C561J5GAC7800 | KEMET | CAP CER 560PF 50V NP0 1808 | 56% | View |
| VJ1210A561KLCAJ32 | Vishay Vitramon | CAP CER 560 PF 200V NP0(C0G) 121 | 56% | View |
| 1812Y5000561KER | Knowles Syfer | CAP CER 560PF 500V X7R 1812 | 56% | View |
Submit your RFQ for HQCEWA561JAT6A and get a quote within 24 hours.
