CAP CER 56PF 7.2KV P90 3838

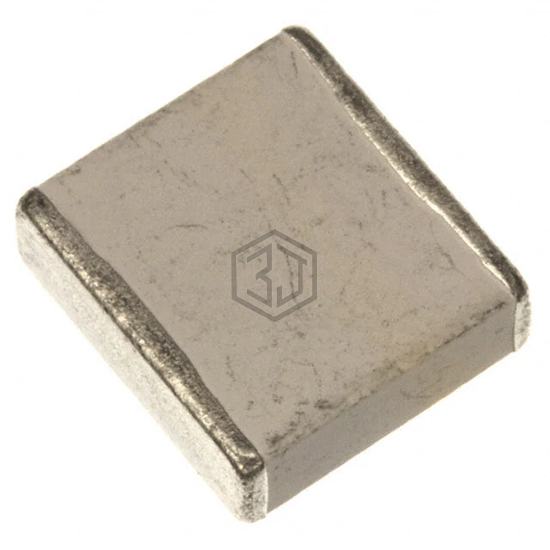

HQCEMM560GAH6A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 56PF 7.2KV P90 3838. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 7200V (7.2kV), package / case 3838 (9797 Metric).
In Stock: 1,694
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 pF |
| Tolerance | ±2% |
| Voltage - Rated | 7200V (7.2kV) |
| Temperature Coefficient | P90 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 3838 (9797 Metric) |
| Size / Dimension | 0.380" L x 0.380" W (9.65mm x 9.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.170" (4.32mm) |
| Lead Spacing | - |
| Lead Style | - |
HQCEMM560GAH6A is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C0603X560F3HACAUTO | KEMET | CAP CER 0603 56PF 25V ULTRA STAB | 56% | View |
| 1210J0630560JAT | Knowles Syfer | CAP CER 56PF 63V C0G/NP0 1210 | 56% | View |
| 2220Y5000560JCT | Knowles Syfer | CAP CER 56PF 500V C0G/NP0 2220 | 56% | View |
| 2225J0630560JCT | Knowles Syfer | CAP CER 56PF 63V C0G/NP0 2225 | 56% | View |
| 0805J0500560KAR | Knowles Syfer | CAP CER 56PF 50V C0G/NP0 0805 | 56% | View |
| 1206Y1K00560GFR | Knowles Syfer | CAP CER 56PF 1KV C0G/NP0 1206 | 56% | View |
Submit your RFQ for HQCEMM560GAH6A and get a quote within 24 hours.
