CAP CER 5.6PF 2.5KV P90 2325

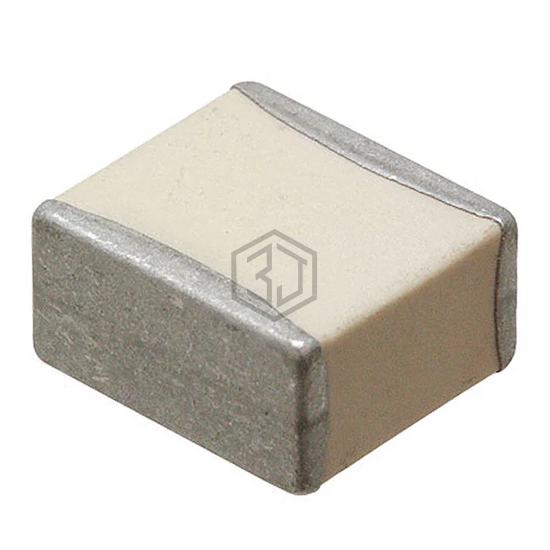

HQCCWM5R6BAH6A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 5.6PF 2.5KV P90 2325. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 2500V (2.5kV), package / case 2325 (5864 Metric).
In Stock: 4,907
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5.6 pF |
| Tolerance | ±0.1pF |
| Voltage - Rated | 2500V (2.5kV) |
| Temperature Coefficient | P90 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2325 (5864 Metric) |
| Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.145" (3.68mm) |
| Lead Spacing | - |
| Lead Style | - |
HQCCWM5R6BAH6A is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GMC10CG5R6C50NT | CAL-CHIP ELECTRONICS, INC. | CAP CER 5.6PF 50V C0G/NP0 0603 | 56% | View |
| 1206Y5005P60DCT | Knowles Syfer | CAP CER 5.6PF 500V C0G/NP0 1206 | 56% | View |
| C0603C569K2GAC7867 | KEMET | CAP CER 5.6PF 200V NP0 0603 | 56% | View |
| CC0402CPNPO9BN5R6 | YAGEO | CAP CER 5.6PF 50V C0G/NPO 0402 | 56% | View |
| QCCP501Q5R6B1GV002T | Johanson Technology Inc. | HIGH-Q MLC CAPACITOR, C-SERIES, | 56% | View |
| 0603J2505P60BFR | Knowles Syfer | CAP CER 5.6PF 250V C0G/NP0 0603 | 56% | View |
Submit your RFQ for HQCCWM5R6BAH6A and get a quote within 24 hours.
