CAP CER 100PF 2.5KV P90 2325

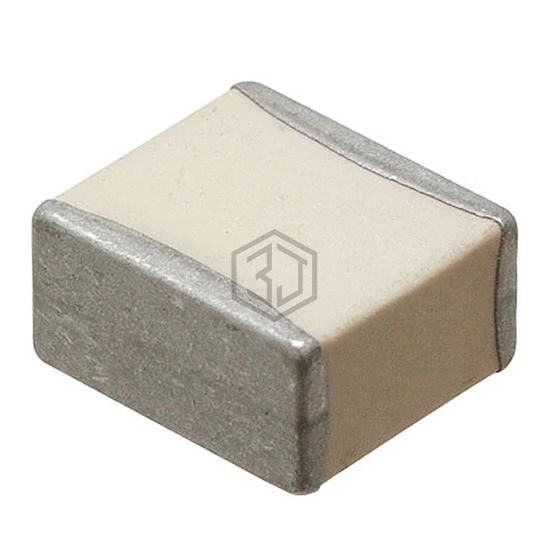

HQCCWM101GAH6A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 100PF 2.5KV P90 2325. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 2500V (2.5kV), package / case 2325 (5864 Metric).
In Stock: 5,305
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 pF |
| Tolerance | ±2% |
| Voltage - Rated | 2500V (2.5kV) |
| Temperature Coefficient | P90 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2325 (5864 Metric) |
| Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.145" (3.68mm) |
| Lead Spacing | - |
| Lead Style | - |
HQCCWM101GAH6A is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 1812HC101KAT1A\SB | KYOCERA AVX | CAP CER 100PF 3KV X7R 1812 | 88% | View |
| VJ1825A101KBGAT4X | Vishay Vitramon | CAP CER 100PF 1KV NP0 1825 | 56% | View |
| 1812Y2500101GCR | Knowles Syfer | CAP CER 100PF 250V C0G/NP0 1812 | 56% | View |
| 0805J6300101MXR | Knowles Syfer | CAP CER 100PF 630V X7R 0805 | 56% | View |
| 1812J0500101KFR | Knowles Syfer | CAP CER 100PF 50V C0G/NP0 1812 | 56% | View |
| VJ0805D101JXXAJ | Vishay Vitramon | CAP CER 100PF 25V C0G/NP0 0805 | 56% | View |
Submit your RFQ for HQCCWM101GAH6A and get a quote within 24 hours.
