CAP CER 22PF 3KV NP0 2325

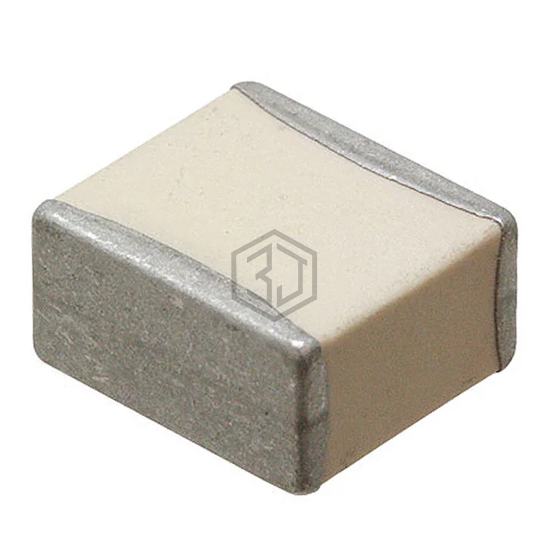

HQCCHA220GAT9A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 22PF 3KV NP0 2325. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 3000V (3kV), package / case 2325 (5864 Metric).
In Stock: 2,578
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 pF |
| Tolerance | ±2% |
| Voltage - Rated | 3000V (3kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2325 (5864 Metric) |
| Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.145" (3.68mm) |
| Lead Spacing | - |
| Lead Style | - |
HQCCHA220GAT9A is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C1608NP01H220J080AA | TDK Corporation | CAP CER 22PF 50V NP0 0603 | 56% | View |
| VJ0603D220GXAAJ | Vishay Vitramon | CAP CER 22PF 50V C0G/NP0 0603 | 56% | View |
| VJ1206A220FXBAR | Vishay Vitramon | CAP CER 22PF 100V C0G/NP0 1206 | 56% | View |
| VJ0805D220KLAAC | Vishay Vitramon | CAP CER 22PF 50V NP0 0805 | 56% | View |
| 1206Y5000220FFT | Knowles Syfer | CAP CER 22PF 500V C0G/NP0 1206 | 56% | View |
| 08051A220KBT1A | KYOCERA AVX | CAP CER 22PF 100V C0G/NP0 0805 | 56% | View |
Submit your RFQ for HQCCHA220GAT9A and get a quote within 24 hours.
