CAP CER 560PF 1KV P90 2325

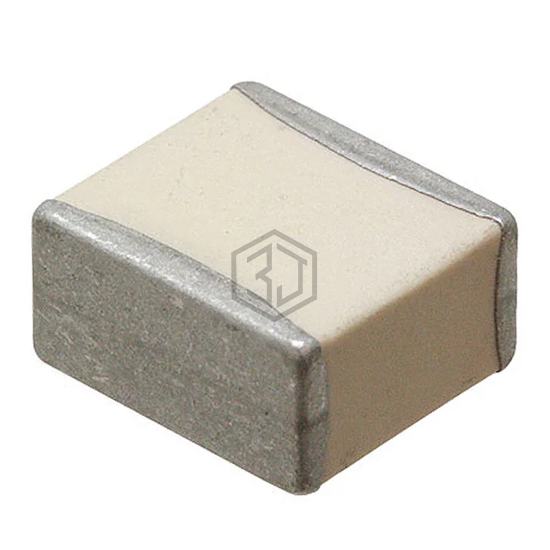

HQCCAM561GAH6A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 560PF 1KV P90 2325. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 1000V (1kV), package / case 2325 (5864 Metric).
In Stock: 2,429
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 pF |
| Tolerance | ±2% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | P90 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2325 (5864 Metric) |
| Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.145" (3.68mm) |
| Lead Spacing | - |
| Lead Style | - |
HQCCAM561GAH6A is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C1812C561M1HAC7800 | KEMET | CAP CER 560PF 100V X8R 1812 | 56% | View |
| C1206X7R501-561KNE | Venkel | CAP CER 560PF 500V X7R 1206 | 56% | View |
| VJ0603Y561KXACW1BC | Vishay Vitramon | CAP CER 560PF 50V X7R 0603 | 56% | View |
| 0603Y2500561JDR | Knowles Syfer | CAP CER 560PF 250V X7R 0603 | 56% | View |
| GA0603A561KBAAT31G | Vishay Vitramon | CAP CER 560PF 50V C0G/NP0 0603 | 56% | View |
| 101SHB561GCLE | EXXELIA Temex | CAP CER 560PF 500V C0G/NP0 1111 | 56% | View |
Submit your RFQ for HQCCAM561GAH6A and get a quote within 24 hours.
